5T Panel Roll Forming Machine 8/min Metal Floor Deck

Name: 5T Panel Roll Forming Machine 8min Metal Floor Deck
Brand: Gracias
Price: 1 USD

Cheap 5T Panel Roll Forming Machine 8/min Metal Floor Deck wholesale

Brand Name : Gracias

Model Number : Floor deck

Certification : CE,ISO

Place of Origin : China

MOQ : 1set

Price : As discussion

Payment Terms : T/T, L/C

Supply Ability : 30sets per month

Delivery Time : 30 work days

Packaging Details : fit for shipping

Voltage : 380V 50Hz 3 phases

Weight : 5 Tons

Tile type : Steel

Warranty : 1 Year

Condition : New

Control system : PLC

Contact Now

5T Panel Roll Forming Machine 8/min Metal Floor Deck

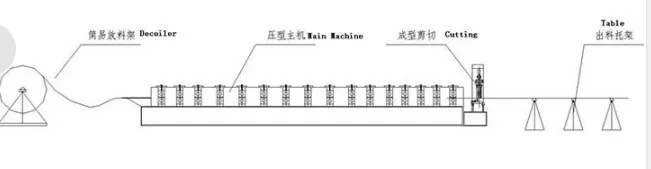

1. The Chart of Process Flow

Decoler -active feeding-forming -caculate length --automatic cutting --product

5T Panel Roll Forming Machine 8/min Metal Floor Deck

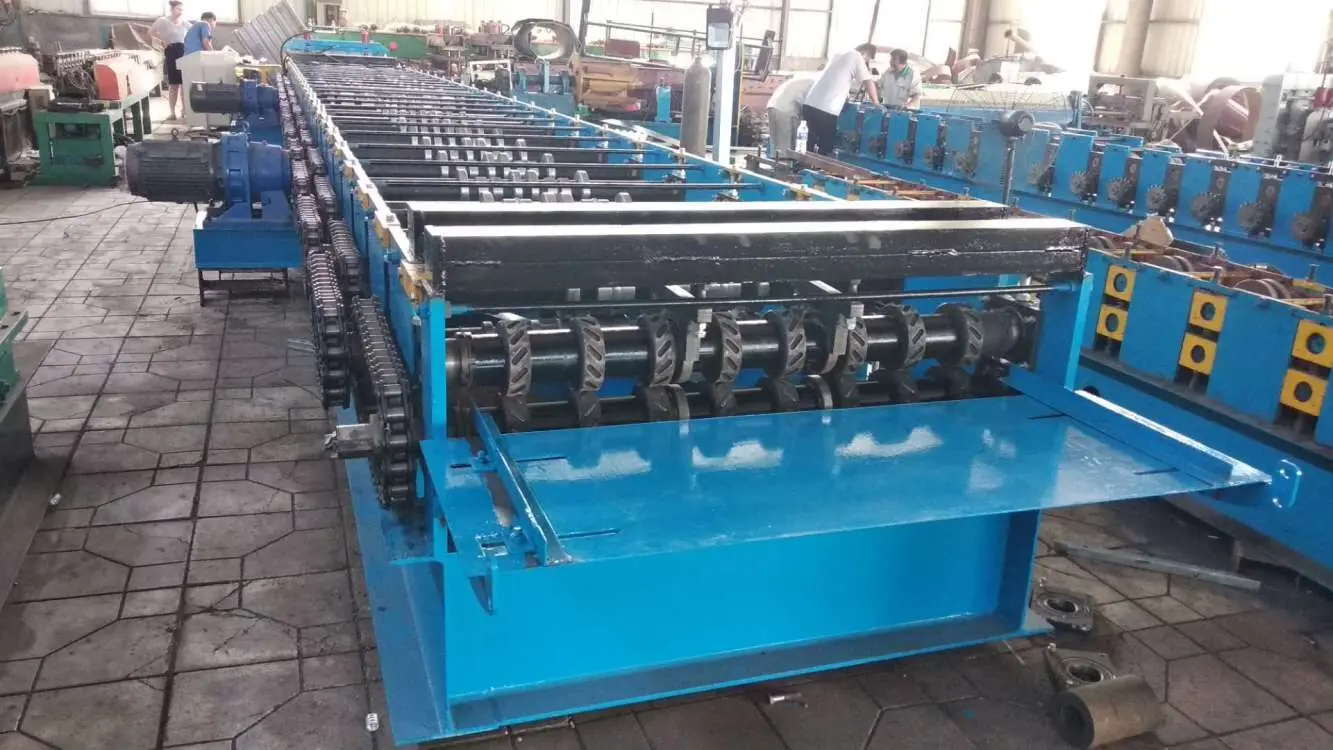

2. Picture of floor deck machine and product
Also, we can can how the product looks like after forming from roll forming machine and

how the floor deck roll forming machine looks like.
Both the machine and product are the heavy one, especially the floor deck roll forming machine,

5T Panel Roll Forming Machine 8/min Metal Floor Deck

3. The whole production line of floor deck roll forming machine includes as below:

Decoiler	1 set
Main forming machine	1 set
PLC control station	1 set
Hydraulic oil pump	1 set
Product receiving table	1 set

4. Main forming machine

a. number of forming steps depend on the machine

b. material of shaft 45# steel . Outer diameter 90mm

c. main motor power 3kw

d. The speed of forming:8-10/min

5T Panel Roll Forming Machine 8/min Metal Floor Deck

5. hydraulic cutter

a. material of blade:Cr12 mould steel quenched treatment 60-62

b. cutting system :adopt advanced hydraulic drive, after forming automatic cut,

no distort, no wasting , high safe factor.(main motor stop cutting)

6. the electrical control system

a. The Brand of display:Taida

b.The main computer (PLC):Tai Da DVP14

5T Panel Roll Forming Machine 8/min Metal Floor Deck

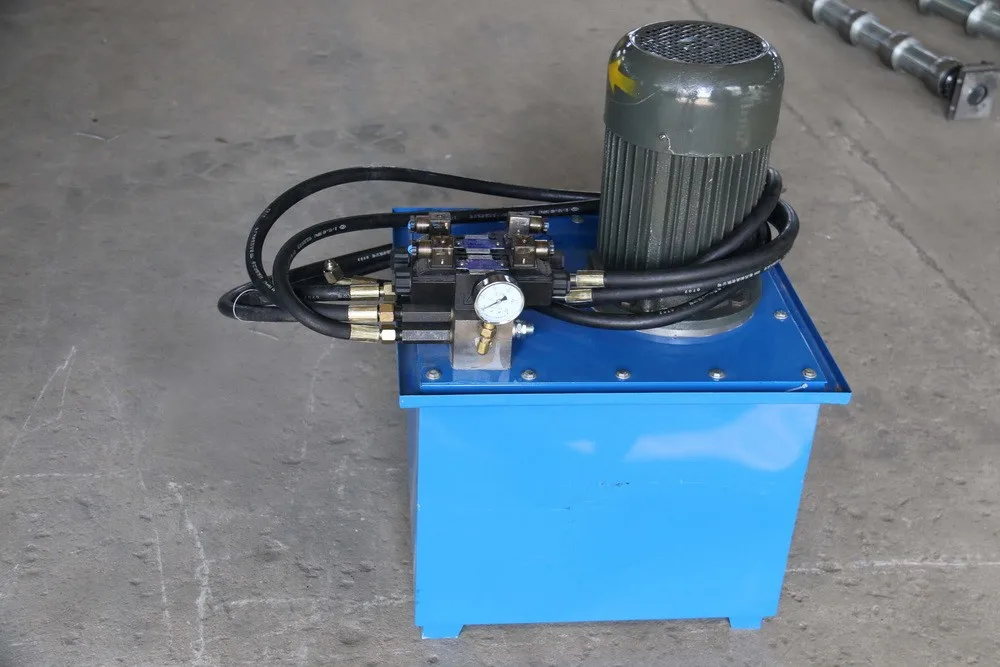

7. Hydraulic system

a. Adopting advanced hydraulic system of Tai Wan

b. Power: 3kw

5T Panel Roll Forming Machine 8/min Metal Floor Deck
